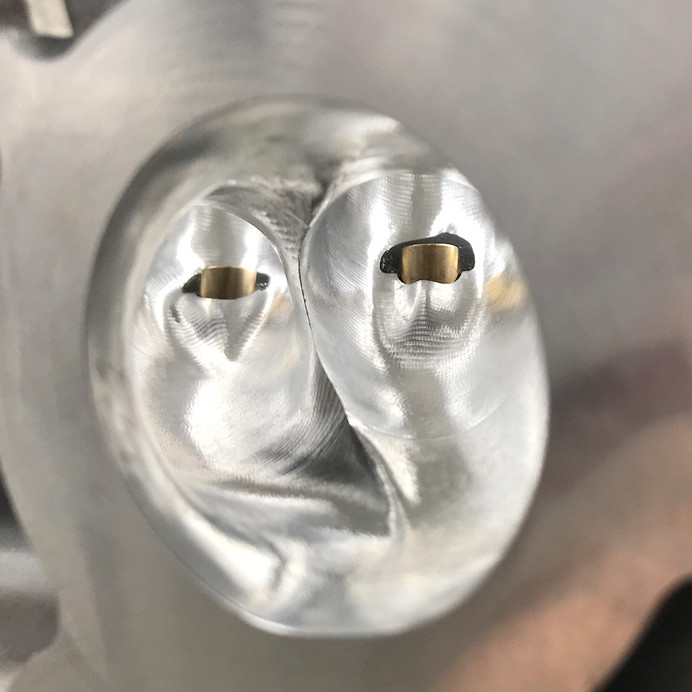

The IAG 1000 CNC Ported Drag Cylinder Heads are designed for drag racing and competition. These fully CNC ported heads provide a significant upgrade in long term performance over the IAG 800 heads. These heads work great for cars where getting the most power with maximum reliability is the goal. The IAG 1000 heads are the best heads available for high-horsepower drag racing. They are designed to support up to 1000 BHP with supporting mods. These heads include upgraded Ferrea +1mm Valves, GSC Viton Valve Stem Seals, Upgraded GSC Valve Guides, Ferrea Dual Valve Springs with Titanium Retainers, and OEM Keepers. FA20 Heads are configured differently from their EJ counterparts. In FA20 heads the casting is split into two parts, the "lower" and the "cam towers." As the name suggests, the "Cam Towers" hold the camshafts to the cylinder head. Kelford "B" cams are available with IAG 1000 Street Cylinder Heads. When Kelford cams are chosen we also include new OEM cam towers, rockers, pivots, and valve shim caps. Each IAG 1000 FA20 DIT Cylinder Head Set starts with new OEM castings from Subaru of America. Next, you'll select whether or not you want to include our optional Kelford camshaft package. If selected, these heads will include Kelford "B" camshafts as well as new OEM cam towers, rockers, pivots, and valve shim caps.
Features & Benefits:
- New Head Castings with Ferrea +1mm Valves, Ferrea Dual Valve Springs.
- Power: The IAG 1000 Cylinder Head Package has a power output rating of 1000 BHP.
Associated Comments:

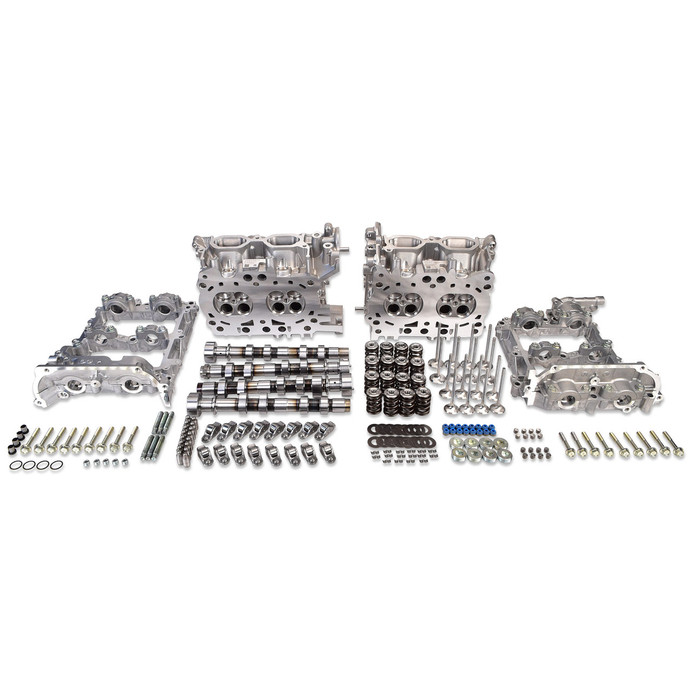

- IAG 1000 CNC Ported Drag FA20 DIT Cylinder Heads Package Includes: (x2) Brand New Subaru OEM AW20 FA20 WRX DIT Cylinder Head Castings, (x8) Ferrea 35mm (+1mm) Intake Valves, (x8) Ferrea 30mm (+1mm) Exhaust Valves, (x16) Ferrea Dual Valve Springs & Retainers, (x16) GSC Manganese-Bronze Valve Guides, (x16) GSC Valve Stem Seals, IAG Performance CNC Full Porting, Multi-Angle Valve Job, Drilling for compatibility with ½" or 14mm Head Studs, Threaded Coolant Plug Upgrade, Resurface, Ultrasonic Cleaning. Optional Camshaft Package Also Includes: Kelford "B" 280 Camshafts, (x2) OEM Cam Towers & Hardware, (x16) OEM Rocker Pivots, (x16) OEM Lifters, (x16) OEM Valve Lash Caps, Bench Valve Lash Service (Final Lash Should be Checked and Adjusted Once Heads are Installed).
- For use with stock cams or mild duration cams.
- Assembly and professional installation recommended.
- Workmanship/parts warranty will only be available for professionally installed cylinder heads.
Additional Attributes:
Extended Information:
- Emissions : EPA Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 20 x 16 x 12 inches
